The world of networking can often seem complex, but understanding the basics can make all the difference in setting up an efficient network. Two key components you often encounter are RJ45 connectors and CAT6 cables. These play crucial roles in connecting and enhancing network systems. RJ45 is the standard connector used for Ethernet networking, while CAT6 is a type of cable known for its high-speed data transfer capabilities.
An RJ45 connector interfaces with network cables like CAT6 to link computers, routers, and other devices. This connection ensures data can travel quickly and reliably through your network.
Key Takeaways
- RJ45 connects devices using Ethernet cables.
- CAT6 cables offer high-speed data transmission.
- Compatible equipment improves network performance.

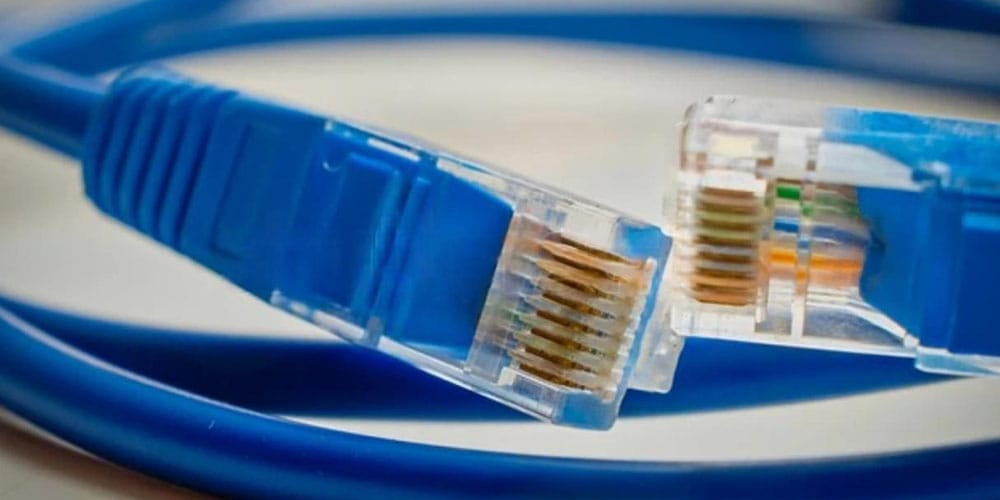

What Is RJ45
The Registered Jack-45 (RJ45) connector is widely used for networking and telecommunications. It was developed to support the growing needs of network infrastructure.
Physically, the RJ45 connector features an 8P8C (8 positions, 8 contacts) configuration, which means it has eight connection slots and eight wires. It is a common sight in Ethernet networking, helping to connect computers and other devices.
In networking applications, you’ll find RJ45 connectors used to link computers to local area networks (LANs). They are essential components in devices like routers and switches, efficiently managing data flow.
For practical use, consider RJ45 in home networking setups. Here, it helps connect your computer to the internet via a router. In corporate environments, RJ45 usage in corporate networks ensures reliable connections across multiple devices, supporting seamless communication and data exchange.
What Is CAT6
Category 6 (CAT6) cables were introduced in 2002 as an upgrade for high-speed networking. They are designed to support faster connections and help reduce interference.
CAT6 cables are twisted pair cables, including four pairs of copper wires. The design offers enhanced shielding to cut down on crosstalk and improve signal quality. This makes them a reliable choice for various networking requirements.
In terms of performance, CAT6 cables can support speeds up to 10 Gbps over distances of up to 55 meters. They are also backward compatible with older standards like CAT5 and CAT5e, making them versatile for different setups.
These cables are widely used in data centers, office buildings, and residential areas. They are ideal for high-speed internet, data transfer, and are becoming common in smart home installations.
For instance, many smart homes rely on CAT6 to manage their networking needs efficiently. In data centers, deploying CAT6 cables can help achieve optimal network performance.
RJ45 vs. CAT6
When setting up a network, understanding the difference between RJ45 and CAT6 is essential. RJ45 is a connector type used in various networking scenarios, while CAT6 is a cable standard for high-speed data transmission.
| Category | RJ45 | CAT6 |
| Meaning | A type of connector that connects Ethernet cables (e.g., CAT5, CAT5e, CAT6) to network devices. Recognizable by its standard 8P8C configuration. | An Ethernet cable standard designed for high-speed internet and networking. Requires RJ45 connectors for proper termination. |
| Color Code | Follows T-568A and T-568B wiring standards, organizing 8 wires by color combinations (e.g., white/green, green). | Shares similar color coding with RJ45, simplifying installation. Features enhanced insulation and shielding to minimize interference and improve signal quality. |
| Applications | Widely used in Ethernet networks, suitable for residential and business setups requiring robust connectivity. | Preferred in high-performance environments like data centers, supporting high-speed networks and maintaining bandwidth up to 100 meters. |
| Number of Pins | Has 8 pins in an 8P8C layout. Uses T-568A and T-568B wiring standards for wire order. | Also has 8 pins, ensuring compatibility with RJ45 standards for seamless Ethernet application support. |
| Data Rate | Supports data rates up to 10 Gbps with suitable cables like CAT6. Performance varies with the cable category. | Designed for 10 Gbps speeds over distances up to 55 meters. Outperforms CAT5 and CAT5e in speed and reliability. |
Frequently Asked Questions
Is Cat6 the same as RJ45?
Cat6 refers to the cable standard, while RJ45 is the connector type used with these cables.
Cat6 cables are designed for high-speed data transfer, and RJ45 connectors are the standard interface for these cables.
Cat6 cables are a type of twisted pair cable used for Ethernet and other network physical layers. They support frequencies up to 250 MHz and are capable of handling speeds up to 10 Gbps over short distances. RJ45 connectors, on the other hand, are the standardized interface used to connect these cables to networking devices. They have eight pins that correspond to the eight wires inside the Cat6 cable, ensuring a secure and reliable connection.
Is RJ45 the same as Ethernet?
RJ45 is the connector used for Ethernet cables, but they are not the same thing.
RJ45 connectors are used to terminate Ethernet cables, enabling them to connect to network devices.
Ethernet is a family of networking technologies used for local area networks (LANs). RJ45 connectors are the standard connectors used to terminate Ethernet cables, allowing them to plug into network devices like routers, switches, and computers. While Ethernet refers to the technology and protocols used for networking, RJ45 is specifically the physical connector that enables these connections.
What is the difference between Cat6 RJ45 and Cat7 RJ45?
Cat6 and Cat7 RJ45 connectors differ in terms of shielding and performance capabilities.
Cat7 RJ45 connectors offer better shielding and higher performance compared to Cat6 RJ45 connectors.
Cat7 cables and connectors are designed for even higher performance than Cat6, supporting frequencies up to 600 MHz and speeds up to 10 Gbps over longer distances. Cat7 RJ45 connectors typically feature additional shielding to reduce electromagnetic interference (EMI) and crosstalk, ensuring a more stable and reliable connection. While Cat6 connectors are sufficient for most applications, Cat7 connectors provide enhanced performance for demanding networking environments.
Are RJ45 connectors the same for CAT5 and CAT6?
When working with networking cables, you might wonder if RJ45 connectors for CAT5 and CAT6 are the same. Physically, both connectors look similar and fit into the same ports. However, there are some differences that affect performance.
The main difference lies in the wire gauge and design inside the connector. CAT6 cables have a slightly larger wire gauge compared to CAT5 cables. This means CAT6 connectors are designed with a staggered pattern to accommodate the thicker wires, as seen in this discussion.
Performance is another key distinction. CAT6 cables can support higher speeds and bandwidths, reducing interference. This makes them more suitable for demanding network setups. If you’re using CAT6 cables, ensure your connectors match, to fully benefit from their capabilities.
In summary, while CAT5 and CAT6 RJ45 connectors share a similar appearance and functionality, differences in wire gauge and connector design are crucial. Choosing the right connector ensures optimal performance for your network needs.
What is the correct color code for a Cat6 RJ45 connector?
There are two main standards for wiring: T568A and T568B. Both are widely used, but T568B is more common in the United States.
T568A Color Code
- Pin 1: White/Green
- Pin 2: Green
- Pin 3: White/Orange
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Orange
- Pin 7: White/Brown
- Pin 8: Brown
T568B Color Code
- Pin 1: White/Orange
- Pin 2: Orange
- Pin 3: White/Green
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Green
- Pin 7: White/Brown
- Pin 8: Brown
What are the advantages of using pass-through RJ45 connectors with Cat6 cabling?
Pass-through RJ45 connectors offer several advantages for Cat6 cabling, including easier installation and improved performance.
Pass-through RJ45 connectors simplify the installation process and provide a more secure and reliable connection for Cat6 cables.
Pass-through RJ45 connectors allow the individual wires of the Cat6 cable to pass through the connector, making it easier to verify the correct wiring order before crimping. This simplifies the installation process and reduces the risk of wiring errors. Additionally, pass-through connectors provide a more secure and reliable connection, ensuring optimal performance for your Cat6 cabling.
